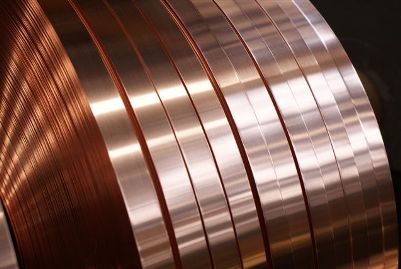

Copper Strip

Global Metals provides a full range of precision copper strip for almost any application. Our copper strip is produced in a wide variety of copper alloys, including clad composites. It can be produced in standard dimensions or custom made to your specific requirements. Our copper strip is manufactured in compliance with the main international specifications, and tighter tolerances are available upon request. We offer various platings and coatings, edge conditioning, special surface conditions, profiled strip, and multiple packaging options to meet our customers’ requirements. The following is a summary of our production capabilities. Our aluminum strip can be produced in standard dimensions or custom made to your requirements. We produce both imperial and metric units.

Alloys

ASTM	Trade Name	EN / DIN
C10100	Oxygen-Free Electronic	Cu-OFE
C10200	Oxygen-Free, without residual deoxidants	Cu-OF
C10300	Oxygen-Free, extra low phosphorous	Cu-OFXLP
C10400	Oxygen-Free with Ag	Cu-OFS
C10500	Oxygen-Free with Ag	Cu-OFS
C10700	Oxygen-Free with Ag	Cu-OFS
C11000	Electrolytic Tough Pitch	Cu-ETP
C11300	Touch Pitch with Ag	Cu-STP
C12000	Deoxidized, Low Phosphorus	Cu-DLP
C12200	Deoxidized, High Phosphorus	Cu-DHP
C14300	Cadmium Copper, Deoxidized
C14420	Telurium-Bearing Copper
C14530	Telurium-Bearing Copper
C19210	Iron-Bearing Copper
C19400	Iron-Bearing Copper	CuFe2P
Other Alloys available upon request

Clad Composites

Copper Alloy & Aluminum
Copper Alloy & Copper Alloy
Copper Alloy & Steel

Thickness

Min. Gauge	0.006"	0.15mm	For thinner gauges see Copper Foil
Max. Gauge	0.250"	6.35mm	For thicker gauges see Copper Plate

Width

Min. Width	0.125"	3mm	For narrower widths see Copper Wire
Max. Width	48.00"	1,220mm

Tolerances

Our copper strip is manufactured in compliance with the main international specifications.
Tighter tolerances are available upon request. Custom tempers are available upon request.

Specifications

Manufactured in compliance with the main international specifications and standards including: ASTM, EN, and DIN. Our brass strip can also be manufactured to meet the requirements of other international standards, including: ASME, SAE, MIL, QQ, ISO, BS, and JIS.

Surface Finishes

Oil-free surface
Electro plating
Hot-dip tin plating
Deburred or rounded edges
Bright and polished surfaces
Strip with protective coatings
Profiled strip by either milling or stamping

Applications

Architecture
Automotive
Bonding applications
Building hardware
Cable wrap shielding
Circuit boards
Cable wrap shielding
Coaxial cables
Commutators
Connectors
Construction materials
Cylinder cups
Decorative items
Electrical applications
Electronics
Electrotecnical appliances
Environmental technology
Evaporators
Gas heaters
General engineering
Heat Exchangers
Heat sinks
Heaters
High frequency data transmission
Hose couplings
Household appliances
HVAC/R
Industrial Applications
Industrial controls
Lead Frames
Medical instrument industry
Oil coolers
Printed Circuits
Radiators
RF cables
Semi conductors
Solar technology
Stamping
Telecommunications
Terminals
Transformers
Vacuum interrupters
Wiring devises

Packaging

Pancake Coils

Up to 500 PIW (pounds per inch of width)
Horizontal or vertical axis packaging available
Core types: Fiber, Aluminum, Steel, Plastic
Inner diameter (ID) as required
Outside diameter (OD) as required
Seperators as required
Inserts as required
Wooden Pallets or Crates

Level Wound Coils

Up to 3,300 lbs
Gauge range from .007" to .065" 0.18 mm to 1.65 mm
Width range from .200" to 2.35"
5 mm to 60 mm

Multi Coils

A stack of coils joined together to produce a long strip when decoiled on a horizontal decoiler. This allows the operator to process an entire stack of coils in one procedure.

Custom Packaging

Custom packaging, coil weights, inner diameters and outer diameters are available upon request.
